Prevent Plumbing Disaster: Inspect Your Septic Tank Baffles

By Geoffrey Sperring

March 01, 2026

Have you experienced a backup of your septic system and noticed odors coming from the garden? If so, you may have a septic tank that needs servicing. Septic tanks are common, especially in rural America.

This May Also Interest You: Does Your Septic Tank Need a Filter?

According to the EPA, around 20% of homes have a septic system. Septic tank baffles control the flow of effluent (wastewater) in the tank to prevent the release of scum and solids and help avoid a drain field failure.

What Is a Septic Tank Baffle, and What Does It Do?

Septic tank baffles are critical for the correct operation of your septic system. They slow the flow of wastewater and make certain that solids have time to settle in the tank. Baffles ensure that only clear effluent flows into the drainfield to prevent blockages.

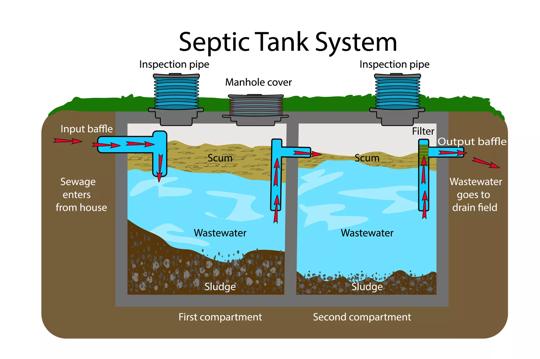

What Does a Septic System Baffle Look Like?

A septic baffle functions like a T-piece. Wastewater flows through the inlet leg to the T-piece. The top of the sanitary tee baffle vents to the top of the tank, while the bottom extends approximately 18 inches into the septic tank.

Are Septic Baffles Plastic?

Newer baffles are PVC or ABS. Concrete septic tanks usually have concrete baffles. Irrespective of their construction, all types of baffles work in the same manner.

Where Are the Baffles Located, and How Do You Get Access to Them?

The baffles are inside the septic tank, below the tank covers. If you have septic tank risers, you can access the baffles from ground level. Alternatively, you must excavate the earth above the tank to access the covers. Depending on the condition of the septic tank, you may need to arrange for a contractor to pump the tank.

Inlet baffle location. You'll find this baffle inside the tank, attached to the sewage inlet pipe.
Outlet baffle location. The outlet baffle is connected to the line from the septic tank to the drain field.
Crossover baffle location. This baffle is on the low wall dividing the solids compartment of the tank from the second chamber.

Baffle Repair Cost

According to HomeServe, a septic tank inspection costs between $150 and $450 (CAD 205 and CAD 614). The cost to repair a baffle varies from $250 and $900 (CAD 341 and CAD 1,228). If you need septic tank pumping, allow an additional amount of between $295 and $610 (CAD 403 and CAD 832).

Septic Tank Filters

The septic tank may have an outlet filter. The filter traps entrained solids that the anaerobic digestion process can’t dissolve. The most common type of effluent filter is a cylindrical filter that fits into the outlet baffle. It has a fine screen to catch the solids and scum in the waste effluent stream. This stops these solids from blocking the fine holes in the perforated pipes buried in the soil. Septic tank filters extend the life of the drain field. You should clean and inspect these filters during routine septic tank maintenance and inspections.

More Related Articles:

Step by Step: How to Perform an Inspection of the Septic Tank Baffles

Baffles are subject to constant stress from the flow of effluent containing fats, food waste and household chemicals. Over time, they deteriorate and fasteners corrode. Here's how to perform a baffle inspection and what you should look for during the investigation.

Remove the Inlet, Crossover and Outlet Baffle Covers

Check for and remove lid fasteners. If you don't have risers, remove all loose dirt around the lids. Depending on the age and design of the tank, you may have one or two main lids and smaller secondary lids above the baffles. You may need a prybar to ease the lids open.

Inspect the Baffles

When inspecting the baffles, check their physical condition. Inspect for cracked, damaged or missing baffles. If the baffles are concrete, check for corrosion.

Check the inlet baffle. Make certain there's no septic baffle clog. Use a rod or plastic pipe to check that the bottom of the baffle is clear and that the sludge level is below the baffle.
Inspect the outlet baffle. If the outlet baffle has a screen, remove the filter and carefully clean it. Make certain the baffle has no openings or cracks that allow effluent bypass. Check that the liquid level in the baffle is in line with the bottom of the outlet pipe and that the bottom of the baffle is above the sludge line.
Check the crossover baffle. See whether there's a crossover baffle. Some tanks have a low wall separating the two compartments. Others use a crossover baffle to allow effluent to pass from one compartment to the next. Check that the baffle is clear and unobstructed.
Pump the tank. If you have blocked or damaged baffles, or the solids and sludge levels are too high, call a septic service to pump the tank. When you need repairs, it's safer to call in a professional. Septic tanks have harmful bacteria and produce toxic gases, including methane and hydrogen sulfide.
